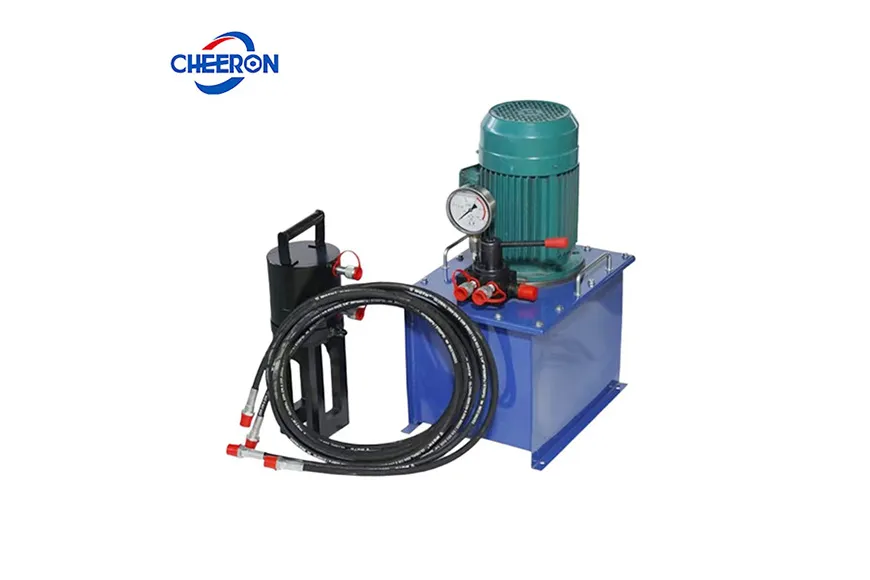

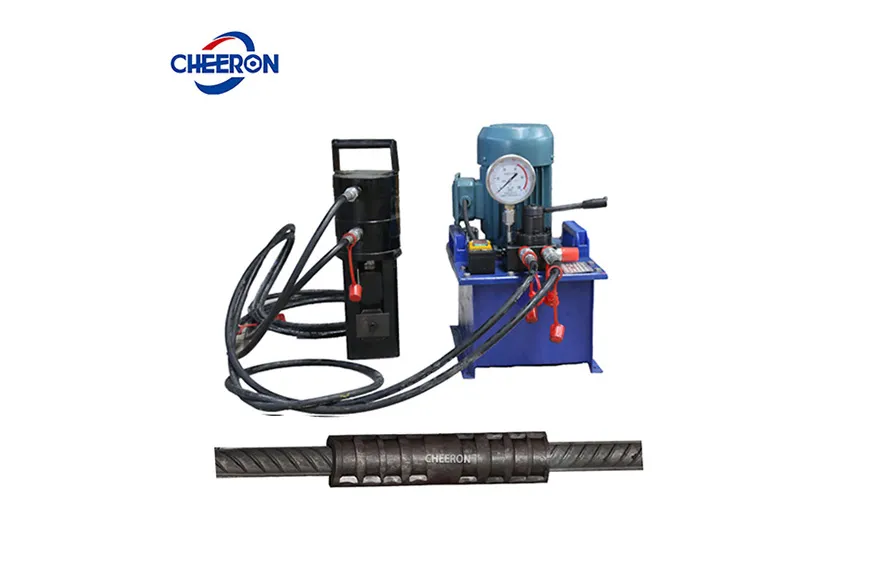

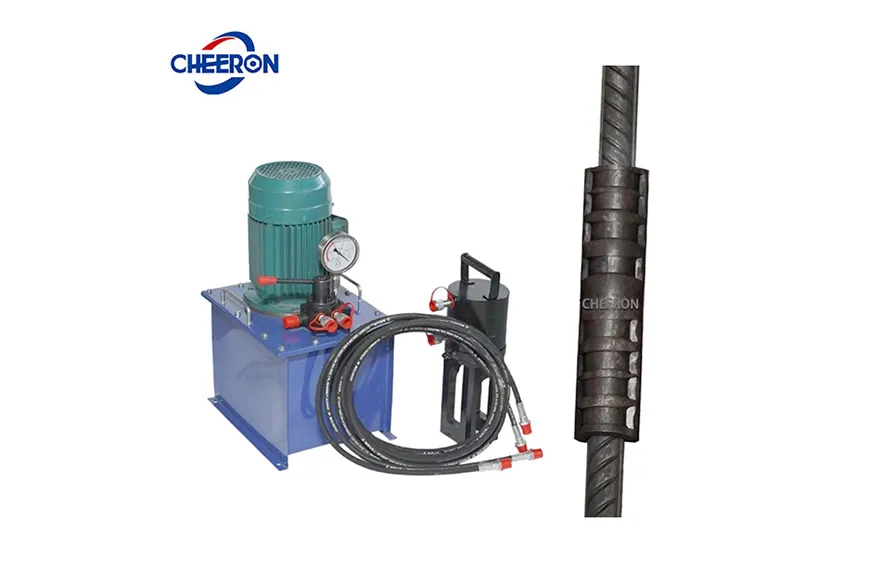

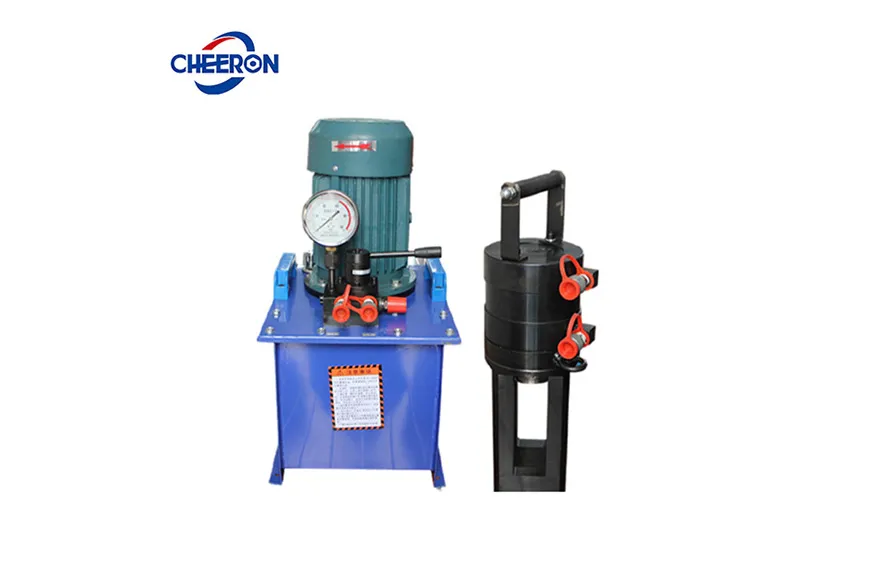

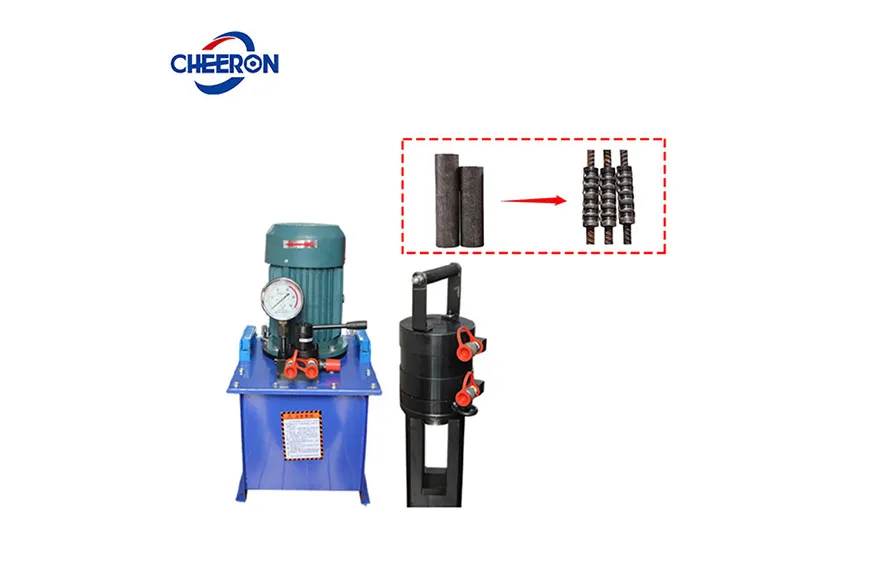

Rebar cold extrusion machine applies radial pressure to the reinforcing bars and the crimped sleeve, causing the sleeve to undergo plastic deformation.
This allows the inner wall of the sleeve to embed into the groove between the transverse ribs of the steel bars, thereby connecting the two reinforcing bars.
| Model | CL32 |
| Crimped Rebar Range | 16-32MM |
| Rated Voltage | 380V/50HZ |
| Motor Power | 4KW |
| Hydraulic Oil | 46# Hydraulic Oil |
| Weight | 125KG |
Crimping connection is fast and efficient, generally3-5 times more efficient than arc welding joints.
The crimping equipment is lightweight, and flexible in operation. It can be easily moved on the ground by one person with one hand.
Wide range of rebar sizes can be processed,including 16-32mm diameter rebars.
Operation is simple, only requiring short-term training and strict adherence to operating procedures.
Equipped with dust-proof protective cap: The interface can be disconnected when the machine is not in use for a long time, effectively protecting the machine.

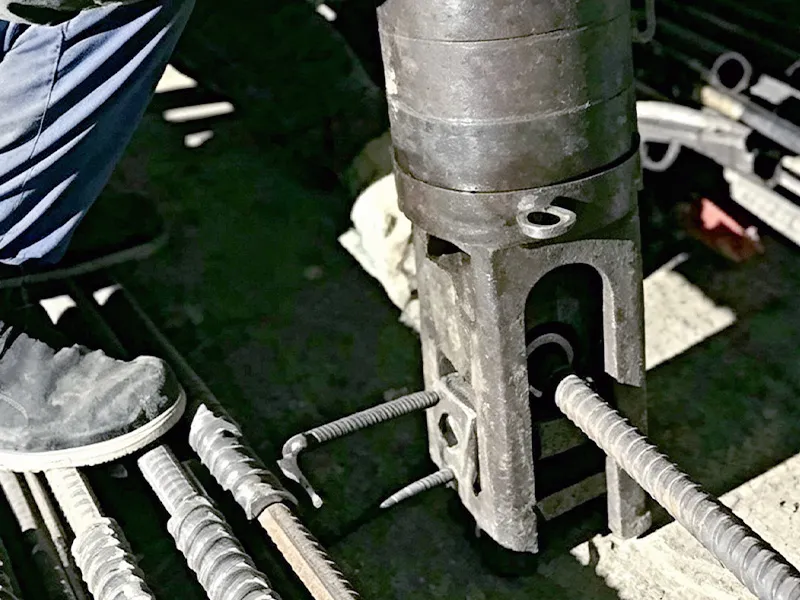

Less dependent on operator skill or weather conditions compared with welding.

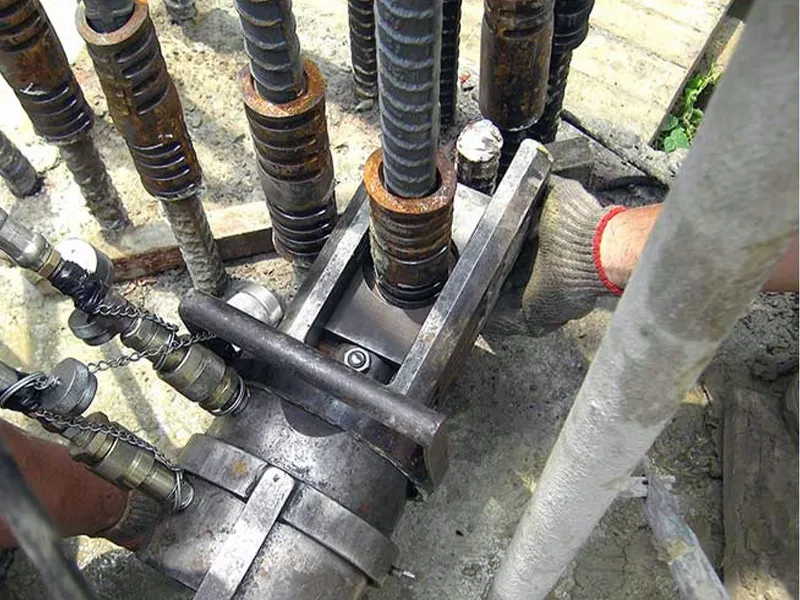

Faster than traditional welding or binding methods and improving overall site productivity.
Typically achieves strength equal to or greater than the parent rebar material.
