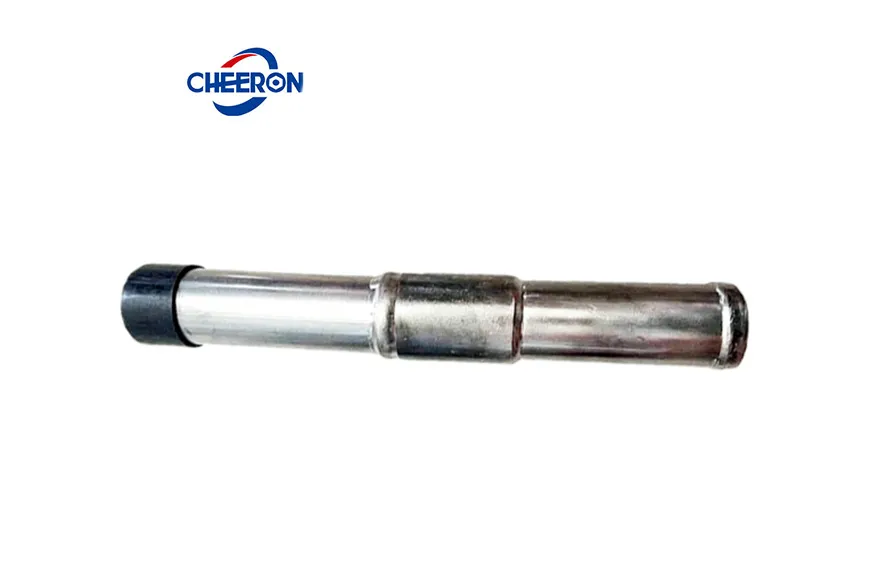

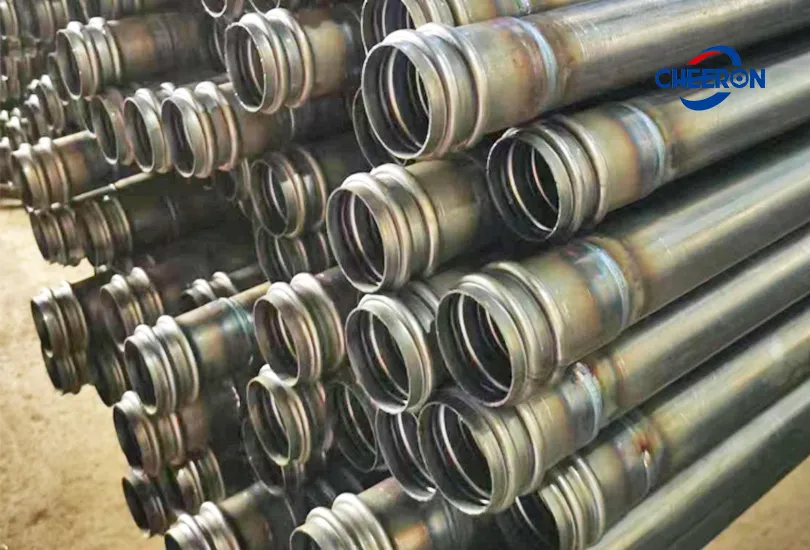

As a type of sonic logging pipe for cast-in-place piles, the push-in sonic logging pipe features a unique snap ring connection, facilitating quick and efficient pipe connection.
| Outer Diameter/mm | Wall Thickness/mm | Length/m | Tensile Strength/Mpa | Elongation/% |
| 50 | 1-3 | 3-12 | ≥315 | ≥14 |
| 53 | 1-3 | 3-12 | ||
| 57 | 1-3 | 3-12 | ||
| 60 | 1-3 | 3-12 |
Material and Performance

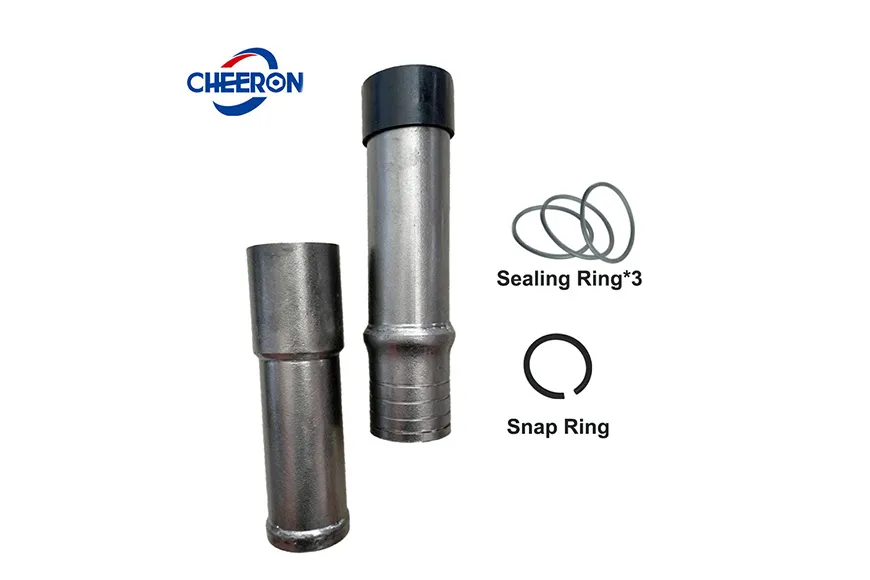

Made of high-quality Q235B steel, the pipe has excellent tensile resistance and high strength. Three sealing rings are arranged at pipe joints to ensure excellent sealing performance.
Snap Ring Connection

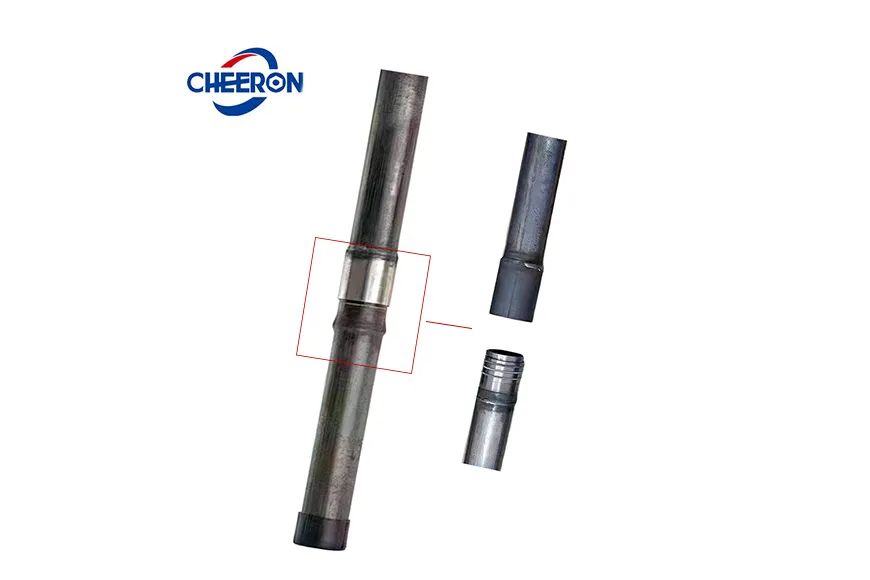

Snap rings are installed inside the socket end of push-in sonic logging pipes. After two pipe sections are inserted and joined, the snap ring automatically locks the connection for easy and rapid assembly.
Connection Method
Each pipe is fitted with a socket joint and a sleeve joint at two ends; connection is finished by inserting the two pipe ends together.
The product is widely applied to cast-in-place pile construction for railways, expressways, port projects and hydropower dam foundations.
Easy installation helps improve the accuracy of pile ultrasonic inspection.
Triple sealing rings deliver outstanding sealing performance to avoid liquid leakage.
Cheeron sonic logging pipes provide reliable acoustic passages for pile integrity inspection.
