Simplifying Complex Structures: The CHEERON Headed Bar in Modern Construction

As the foundational role of steel reinforcement becomes increasingly complex in modern engineering—from high-rise buildings to seismic-resistant bridges—the need for efficient, high-performance anchorage is paramount.

Traditional rebar detailing, relying on cumbersome hooked bars, often leads to severe rebar congestion in critical connection nodes like beam-column joints. This congestion not only complicates on-site installation and increases labor time but also compromises the quality of concrete pouring and consolidation, potentially impacting a structure's long-term integrity. The CHEERON Headed Bar system is CHEERON's direct answer to this industry challenge. By adopting this mechanical rebar anchorage technology, we are transforming how complex joints are built, ensuring simplified installation, superior structural performance, and enhanced concrete quality for our B2B clients across Southeast Asia and the Middle East.

The Technical Superiority and Types of the CHEERON Headed Bar

The Headed Bar system provides significant benefits over traditional anchorage, which relies on bending steel into hooks or laps.

This mechanical rebar anchorage technology is designed to directly address the primary pain points of congested reinforcement areas, ensuring better force transfer and concrete quality.

Key Advantages:

• Mitigates Rebar Congestion: By replacing bulky hooked bars, the system effectively mitigates rebar congestion and the associated difficulties in tying densely packed steel. This is particularly crucial in critical areas like beam-column joints.

• Enhances Concrete Quality: Reduced steel congestion inherently improves the quality of concrete pouring and consolidation, leading to better long-term durability and structural integrity of the connection node.

• Saves Steel and Facilitates Construction: Headed bars can be produced in factories and supplied commercially, replacing traditional bending and straight bar anchoring methods, which saves steel and streamlines on-site construction.




CHEERON offers two primary Headed Bar Types to suit diverse project needs:

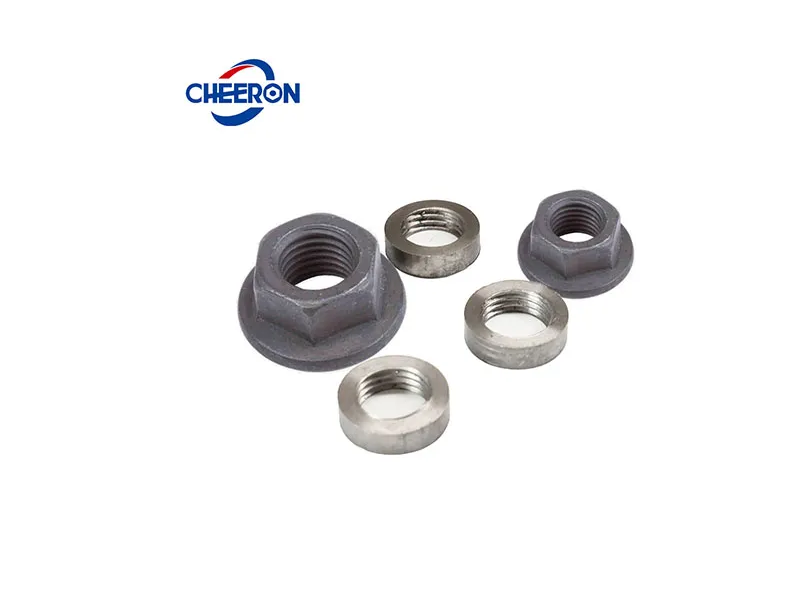

1. Type 1: Hexagonal Headed Bar: This is an anchor plate that combines the pad (pressure-bearing plate) and the nut (connection end) into one piece. It connects directly to the top of the reinforcing bar using a straight thread.

2. Type 2: Circular Headed Coupler (Terminator): This system involves connecting a circular headed coupler (or terminator coupler) to the straight threaded end of the rebar.




Headed Bar Applications: Strengthening Critical Construction Nodes

The versatility of the CHEERON Headed Bar allows for its application across the most complex and critical joints in construction engineering, including buildings, bridges, water conservancy, hydropower, nuclear power plants, and subways. The system's success is validated by its use in major infrastructure projects where strength and quality are non-negotiable.

Examples of Application Excellence:

• Beam-Column Joints (Frame Structures): Headed bar reinforcement is used to replace the traditional bent reinforcement for the beam-column joints of the frame structure. This simplifies steel detailing and installation, which traditionally involves intricate tying of hooked bars.

• Shear Reinforcement: It is used as a shear reinforcement for simply supported beam supports, beams, or slabs, replacing the anchoring of traditional bent and straight bars. This improves the performance of the shear connection node.

• Nuclear Power Plants: At the Sanwan Nuclear Power Station, the Headed Bar was used instead of the traditional hook anchoring. This reduced the cross-interference in the densely reinforced steel area. Furthermore, using anchor plates instead of hooks for transverse connecting bars solved the problem of steel bar collision in the cast-in-place section, ensuring proper concrete flow.

The inherent advantages of the Headed Bar—such as the lack of a heat-affected zone found in welding—are critical in certain environments. In the Shanghai Jinmao Tower, where typhoons are frequent, anchor plate nodes showed no slip deformation after 2 million cycle load tests, demonstrating performance superior to traditional welded anchoring.

The Construction Efficiency Gained with the CHEERON Headed Bar

Beyond structural integrity, the CHEERON Headed Bar system drastically enhances on-site construction efficiency, a massive benefit for project managers and a strong selling point for equipment dealers.The system shortens the overall construction schedule through prefabrication and rapid installation:

• Time Savings: For the Hangzhou Bay Cross-sea Bridge project, the anchoring operation time for a single reinforcing bar was no more than 3 minutes. This represented a 50% saving in working hours compared to traditional hook binding methods.

• Facilitating Prefabrication: The system allows construction teams to prefabricate the anchor reinforcing bar cage—including completing the installation of the anchoring plate—before the overall hoisting of the unit. This shift of complex work from the congested job site to the controlled factory environment is key to accelerating large projects.




Supported by our Advanced Manufacturing Capabilities—a 20,000 square meter facility with precision equipment—and our commitment to Professional and Reliable solutions, CHEERON ensures every Headed Bar component meets the highest quality standards, contributing directly to project success and structural longevity.
