Weldable Rebar Coupler

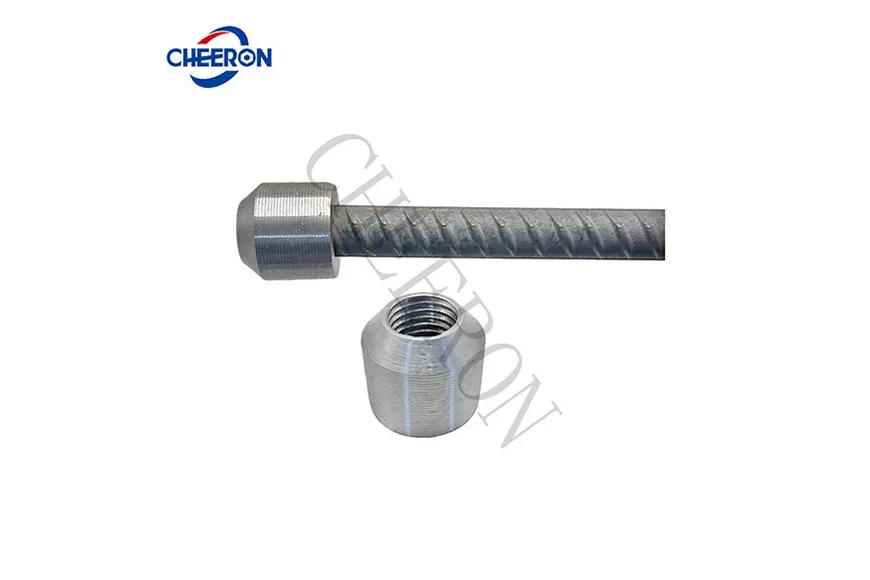

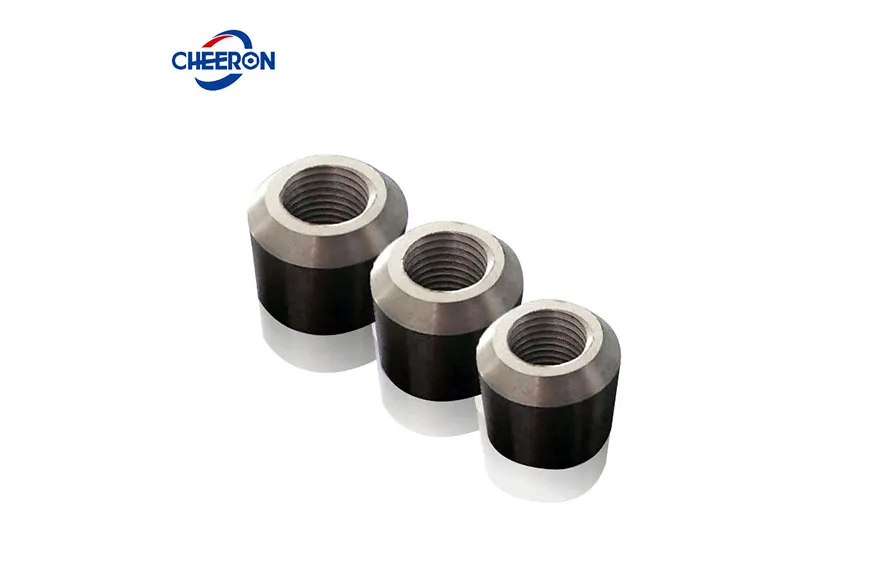

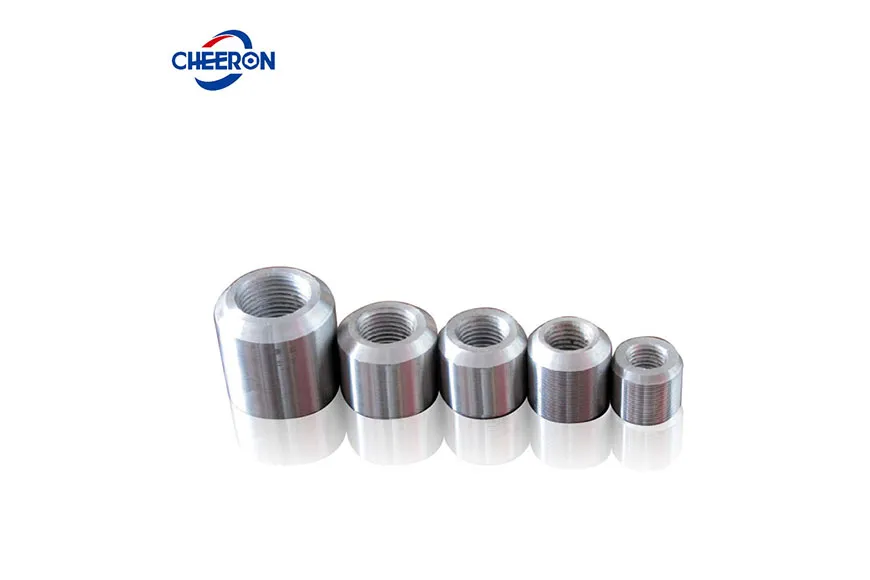

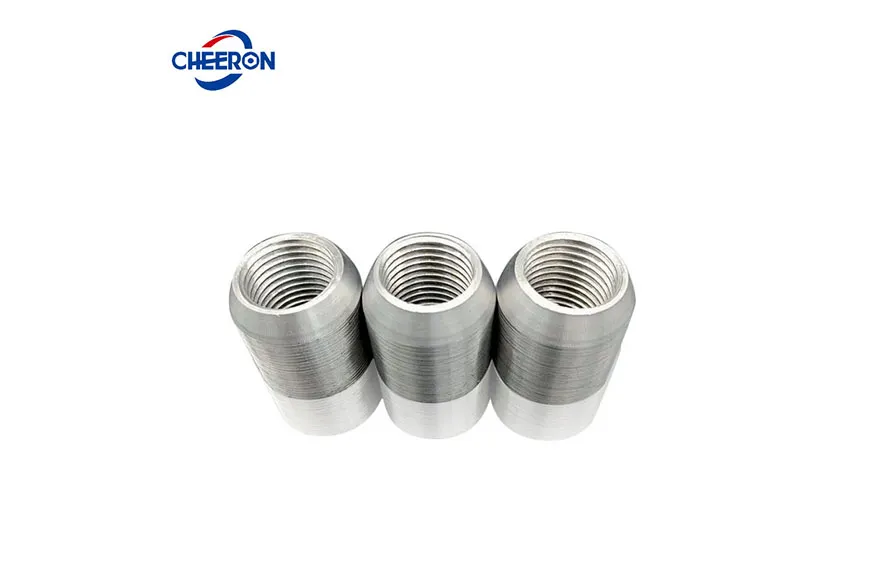

Cheeron weldable coupler is a type of threaded reinforcement coupler to complete mechanical splicing of the reinforcing bar and steel sections.


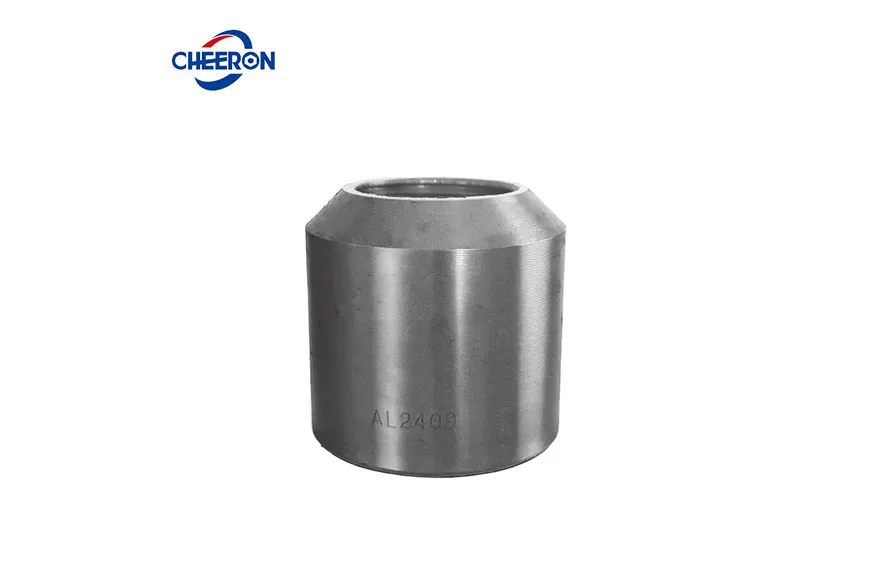

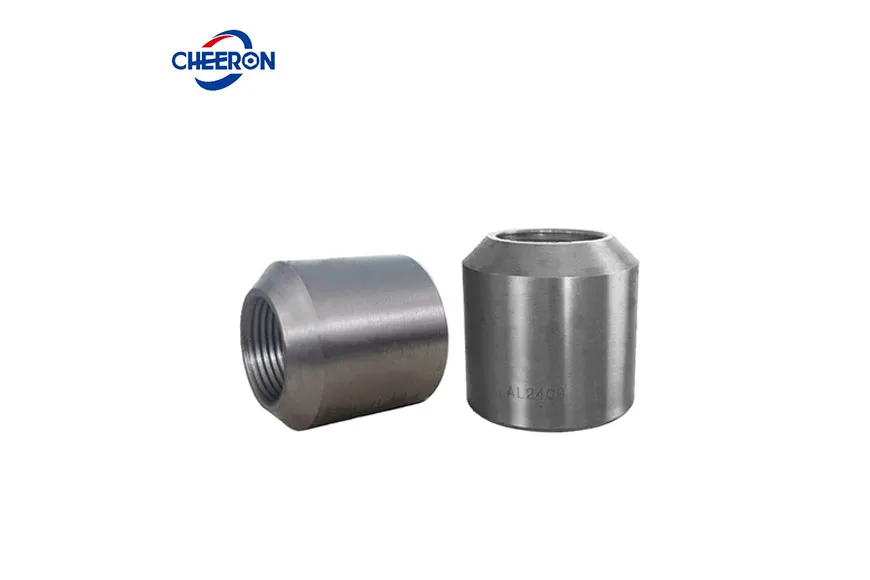

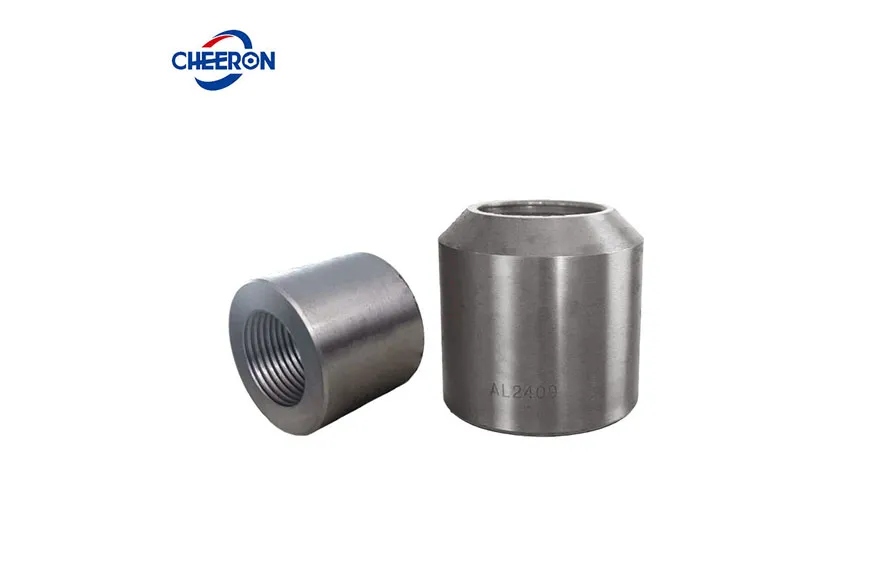

A weldable threaded rebar coupler has one end that is cylindrical and the other end that features a chamfered design. In steel structure construction, first weld the chamfered end of the weldable coupler to the steel plate, and then screw the pre-threaded rebar into the other end.


Specification
Video
Features
Resources
Contact

Weldable Rebar Coupler Specifications

Material: 20Cr steel / 45 carbon steel

Surface Finish: Plain; Epoxy Resin; Galvanized

Thread Types: Parallel thread; Tapered thread

Angle: Round;

Coupler Type: Weldable Coupler

Thread Pitch: 2.5-5mm


Weldable Rebar Coupler Specifications diagram

Rebar Diameter

MM

Outer Diameter

OD/MM

Length

L/MM

122120
142422
162726
183128
20
3332
223934
254438
284943
325446
365956
406462
* Coupler size can be customized. Contact Us for more information.


Weldable Coupler Overview and Use Video


CHEERON Weldable Coupler Highlights

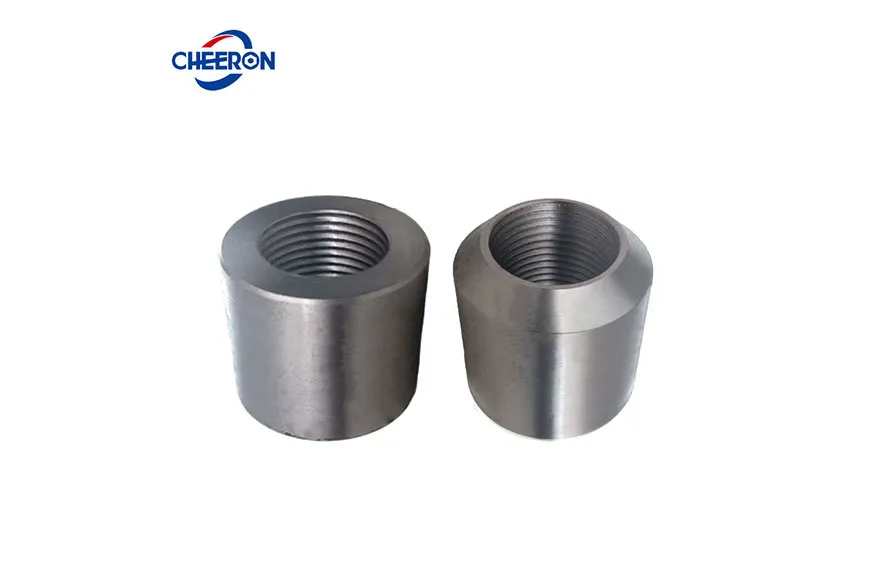

  • One end has internal tapered/straight thread, and the other end is designed with a chamfer for easy welding.

  • The realization of the mixed connection of rebar with threaded end and steel structures has expanded the application scope.

  • The coupler is made of weldable 20Cr steel with a tensile strength exceeding 550 MPa, ensuring the strength of the welded parts and the reliability of the threaded connection.

  • Applicable to 12-50 mm (#4-#14) Rebars.

  • Cheeron factory is ISO 9001 certified.


Coupler Compatible Rebar Types

Yield strength of the rebar joint using the welded coupler is greater than 420 MPa, and it is compatible with ASTM A615 Grade 60; TMT rebars.


Weldable Coupler Application-Steel Structures

Welded threaded coupler are used for mechanical connection methods between reinforcing bars and steel structures, such as steel beams or steel columns. One end of this connector is threaded, and the other end is designed to be weldable to steel plates or other steel structures. For example: The piers of a bridge are connected to the steel beams.

Diagram-of-Application-Scenarios for-Weldable-Rebar-Joints.webp

Notes

  • The welding process must comply with standards to avoid welding defects affecting the connection strength.

  • It is necessary to ensure the matching between the threaded end and the reinforcing bar.



Weldable Coupler For Rebar Installation Steps

  1. Weld the chamfered end of weldable coupler to the steel column/steel plate

  2. Screw the pre-threaded bars into the weldable coupler

  3. Use a coupler wrench to tighten reinforcing bar and use the correct torque.

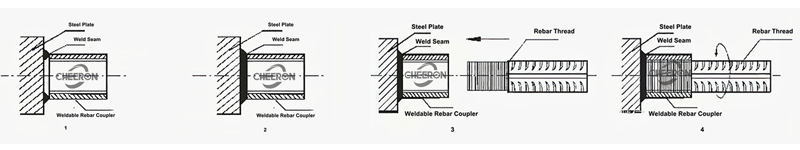

Weldable Rebar Coupler Installation Diagram
