The thread rolling machine achieves the purpose of strengthening the end of the steel bar and processing the thread by cutting and rolling the thread in one step. Rebar thread rolling machine solves the problem of pre-treatment of the end of the steel bar before processing and the problem that similar equipment needs to roll rebar thread rolling machine multiple times. Thus, rebar rolling machine reduces the on-site processing procedures and multiple steel bar handling, and improves the on-site production and processing efficiency.

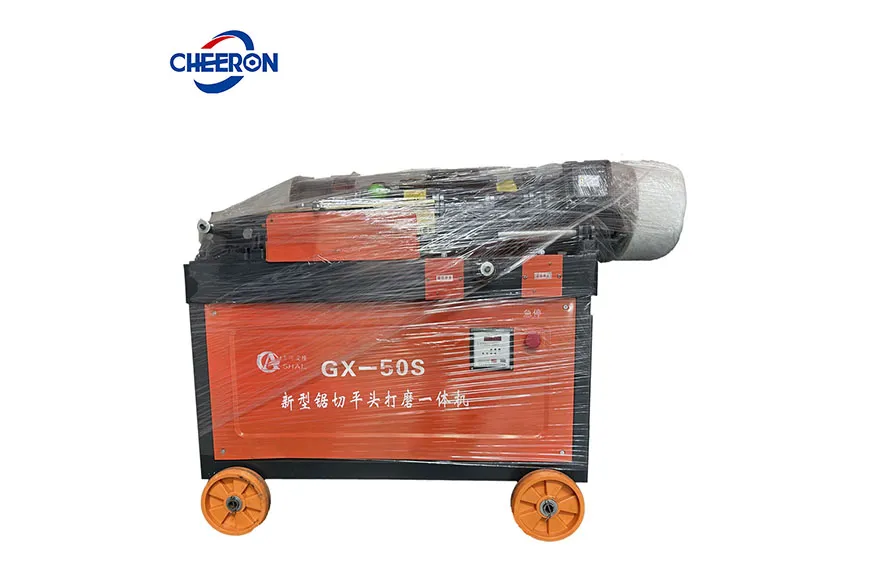

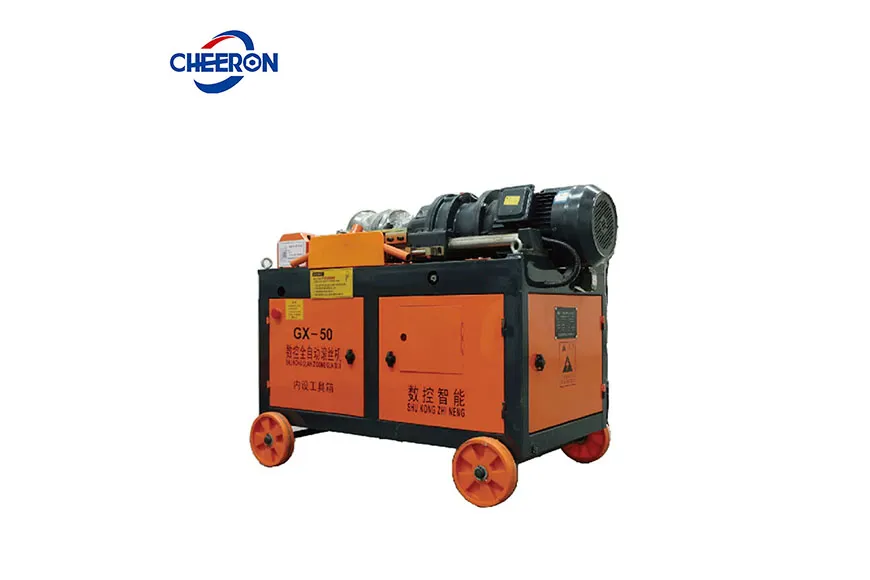

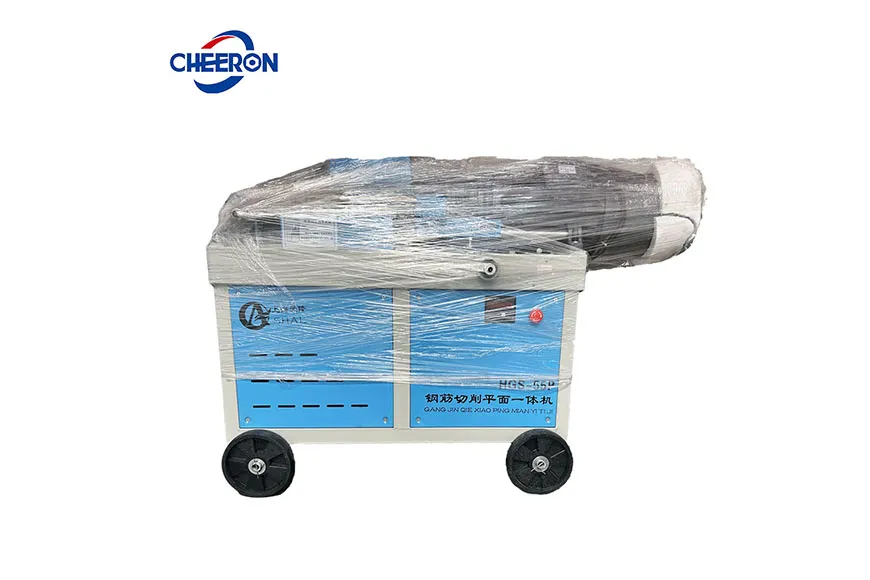

| Model | JBG-40 | GX-50 | GX-50s | GX-100 | HGS-55P |
| Power Supply | 380V | 380V | 380V | 380V | 380V |
| Rebar Diameter Range | 14-36mm | 12-50mm | 14-32mm | 14-40mm | 16-36mm |
| Thread Length | Right-hand thread：100mm Left-hand thread：80mm | ≤120mm | Right-hand thread：20-50mm Left-hand thread：20-50mm | Right-hand thread：20-50mm Left-hand thread：20-50mm | ≤50mm |
| Main Motor Power | 7.5KW | 5.5KW/7.5KW | 5.0KW | 7.5KW | 9.0KW |
| Spindle Speed | 1:17 | 48-82 rpm | 1:17 | 1:15 | 40-62 r/min |
| Blade Specification | 13*25*30 | 10*25*30 | 13*25*30 | ||
| Weight / KG | 290 | 290 | 290 | 400 | 290 |
Rebar thread rolling machine can be rolled after the ribs of the steel bars are stripped, and the precision of the thread profile is very high, with stable and reliable quality.
Compact structure, high efficiency, and the thread processing speed is significantly faster than that of other equipment.
Rebar thread rolling machine operation is simple, with strong automation. It can automatically expand and retract the knife, and the noise generated by this rebar processing equipment is relatively low.
The types of steel bars processed are quite extensive and require less equipment.
High degree of automation.
Rebar thread rolling machine is equipped with a thread rolling wheel to achieve rolling processing of steel bars of various specifications.
The processing of the thread can be completed in one clamping of the steel bar, and the processing efficiency of the thread head is very high.
